LDV DELIVER 9 · LIGHT KIT INSTALLATION

JULY 2026, Version 2

Which kit does this guide apply to?

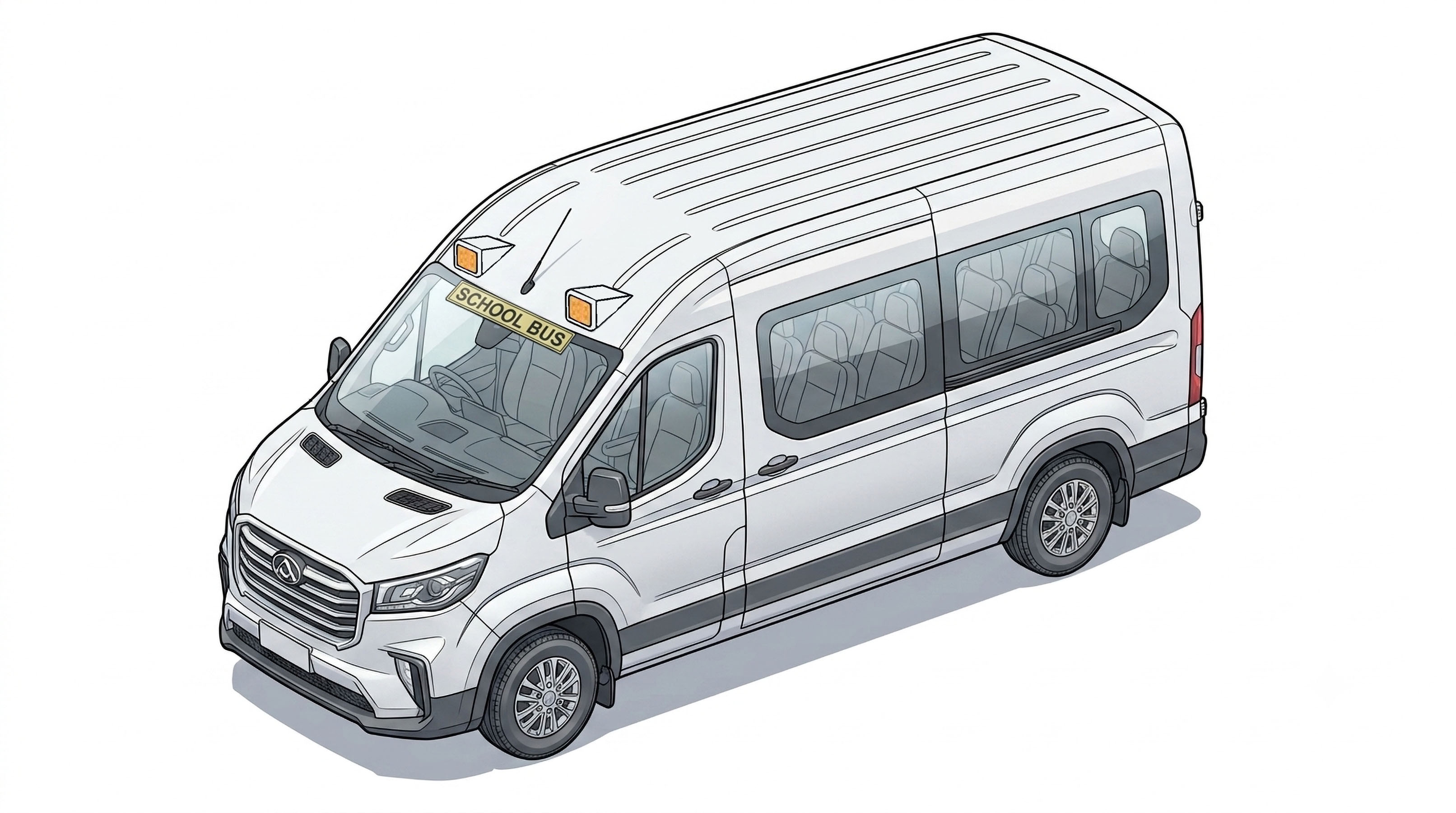

This installation guide covers the external-mount SafeBus School Bus Light Kit for the LDV Deliver 9, compliant in every Australian state and territory except NSW and Tasmania. Pick your state below to view and order the correct kit.

FRONT: External mount · REAR: External mount

LDV Deliver 9

School Bus Light Kit — Installation Guide

Before you start

Read every step in full before beginning any wiring or drilling.
Disconnect the battery negative terminal before making any connections.
Two-person job recommended when feeding the loom through the headlining and A-pillar.
Always verify door-sensor polarity (Section 2.4) with a multimeter before connecting — incorrect polarity will not trigger the warning lights correctly.

Kit items

SB008 Front Wig-Wag lights
SB001A Rear Wig-Wag lights
LCM100 Electronic control box
SBKIT1 Complete loom
SB7718 Front signage
MC3040 Rear signage
Dash switch
Door sensor assembly

Tools & materials

18–20mm hole saw
Wire strippers & terminal crimper
Cable ties
Trim removal tool
Multimeter (polarity check)
Supplied 2-pin & 3-pin connectors

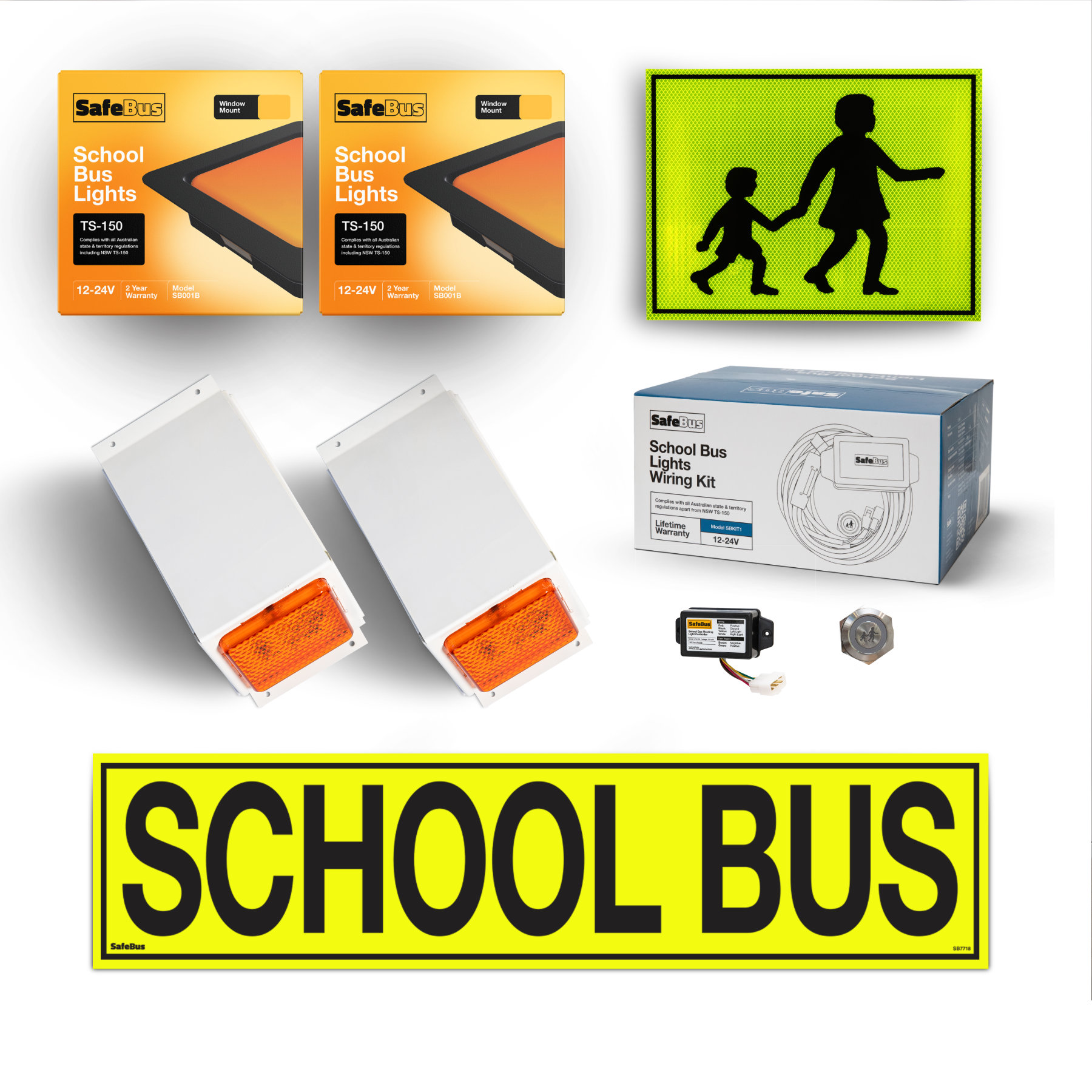

Package Contents

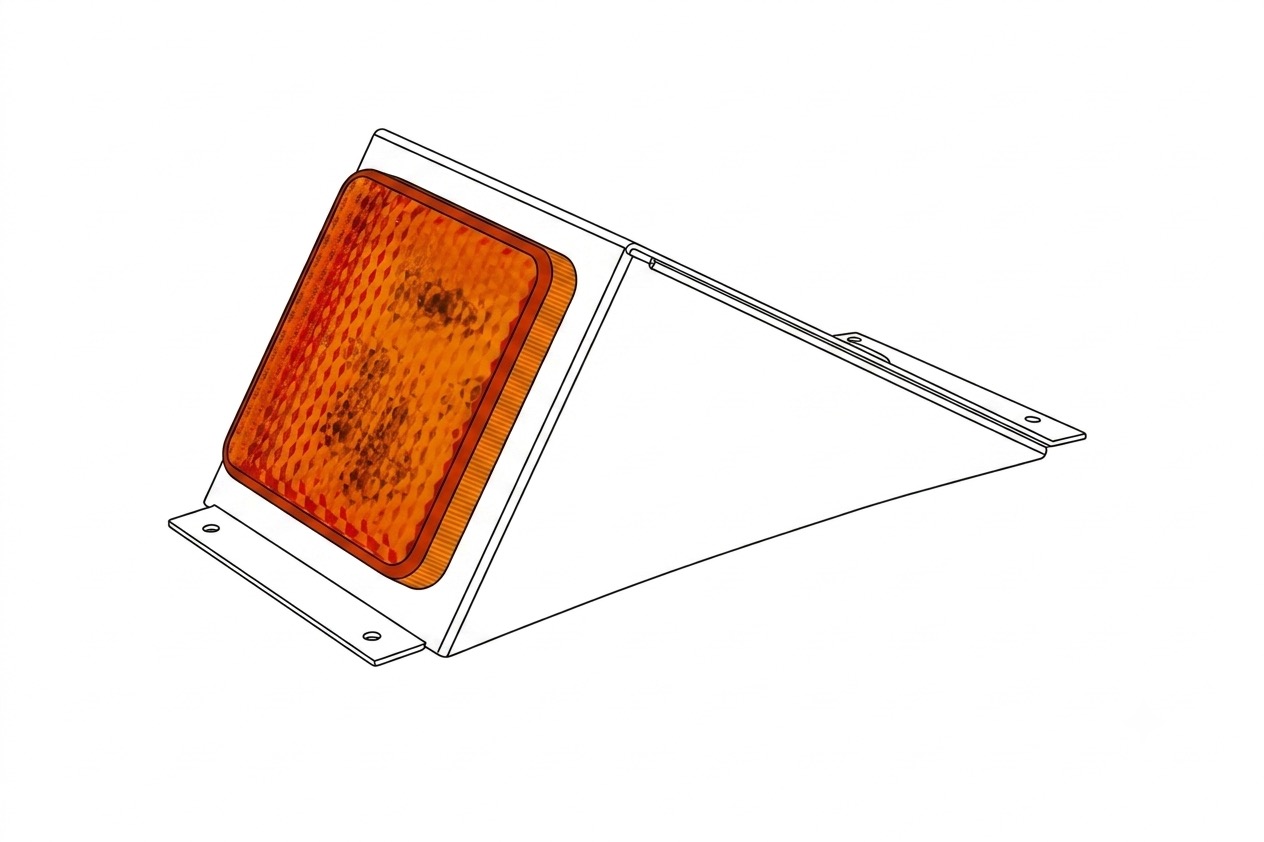

SB008 Front light

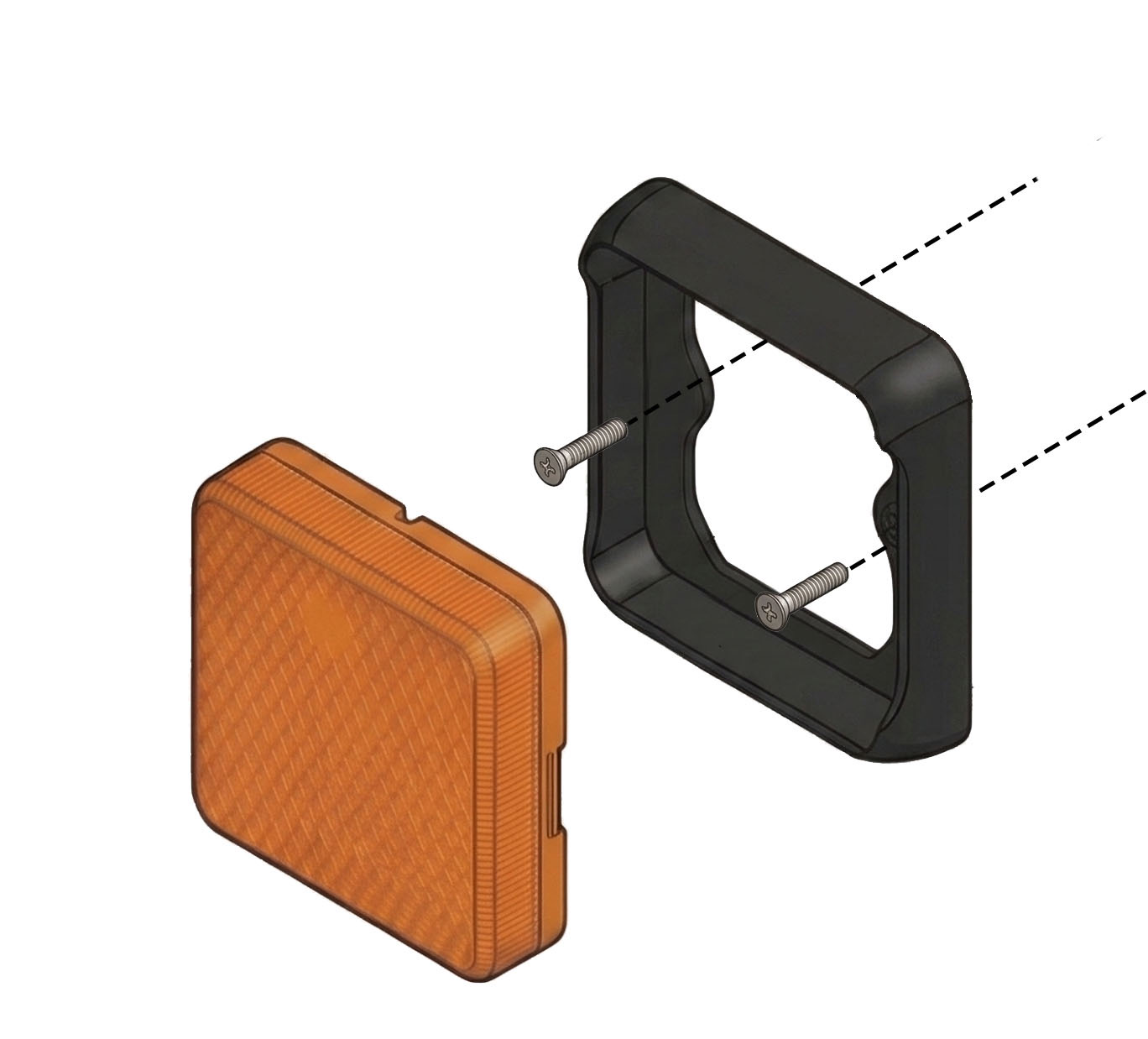

SB001A Rear light

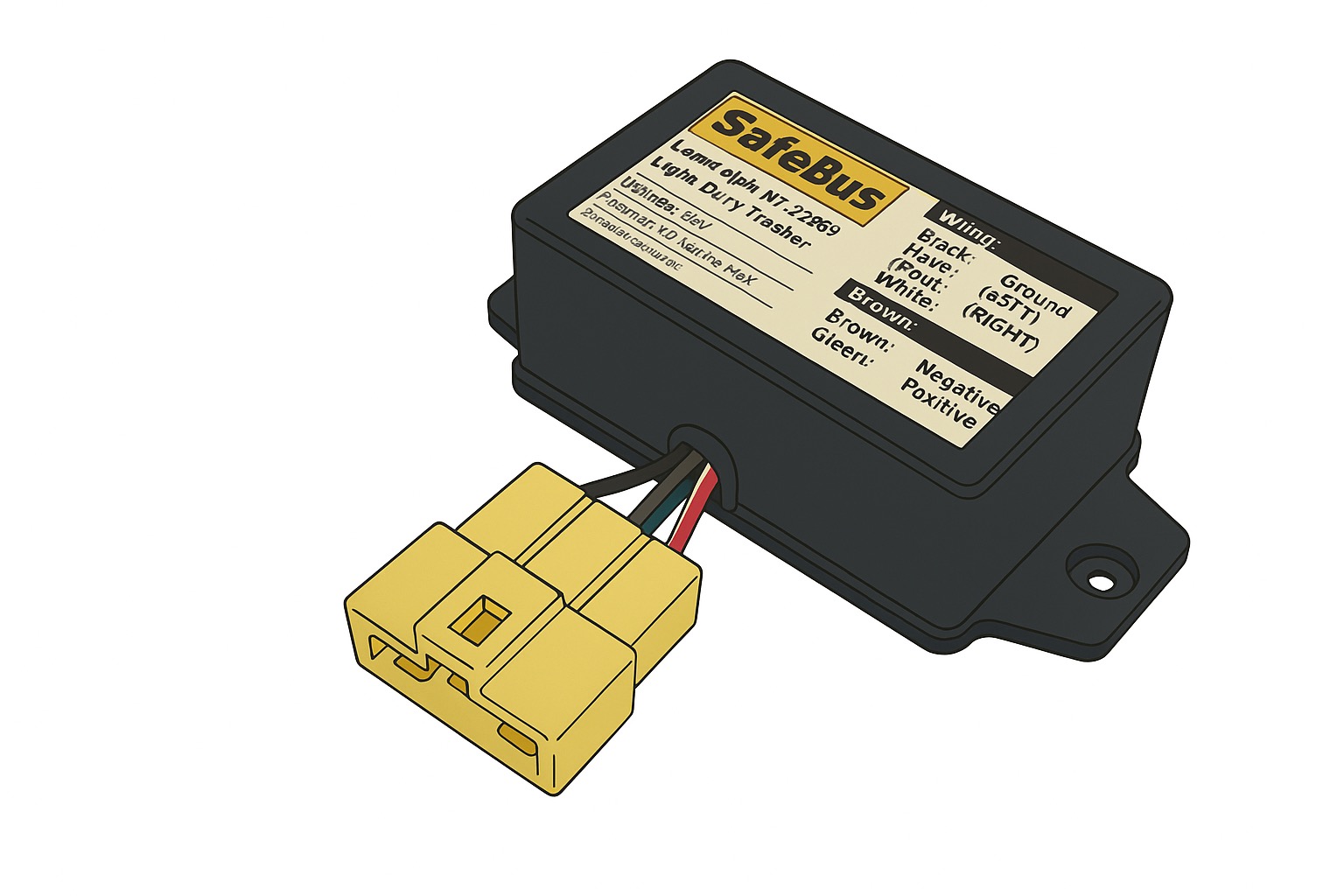

LCM100 Control box

Dash switch

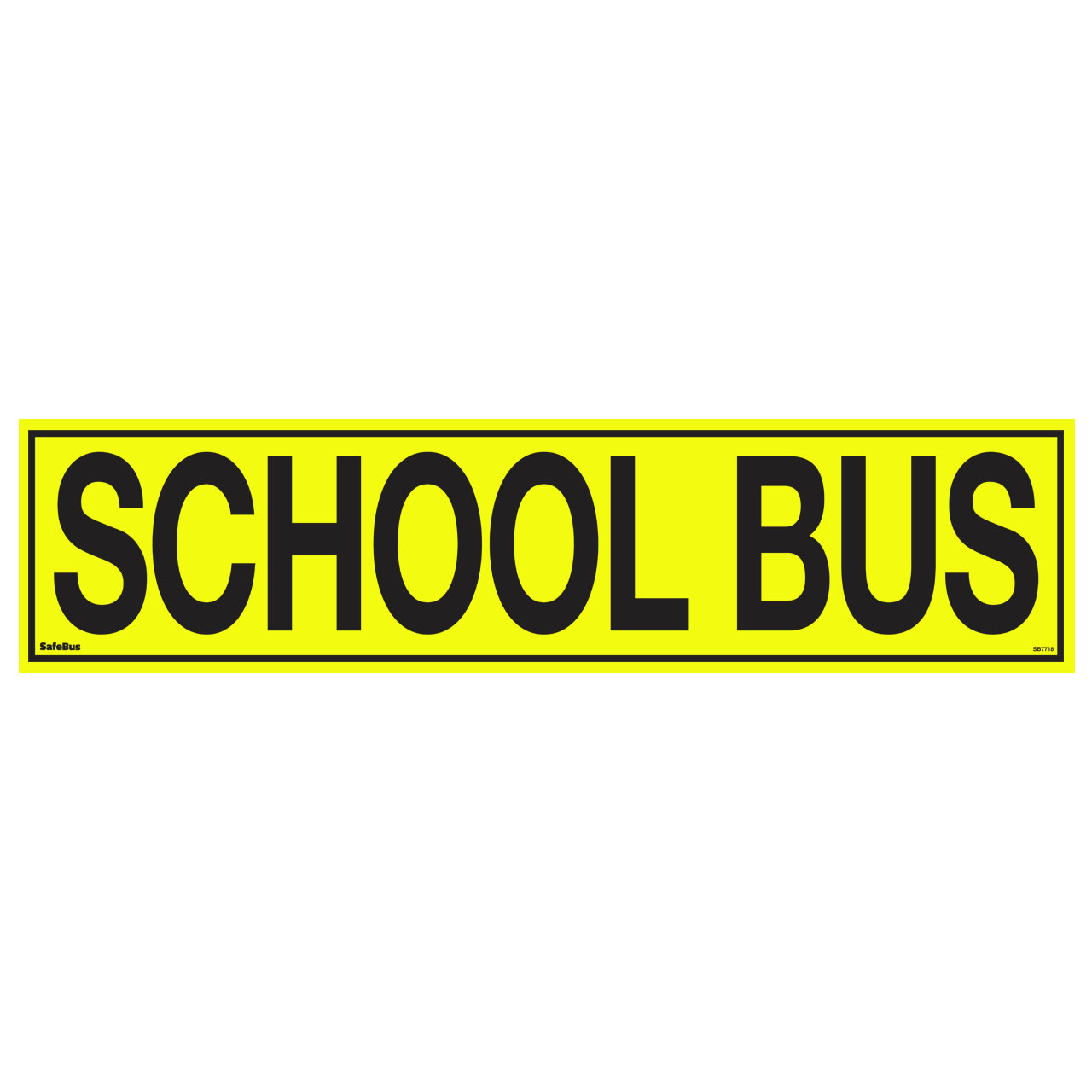

SCHOOL BUS sign

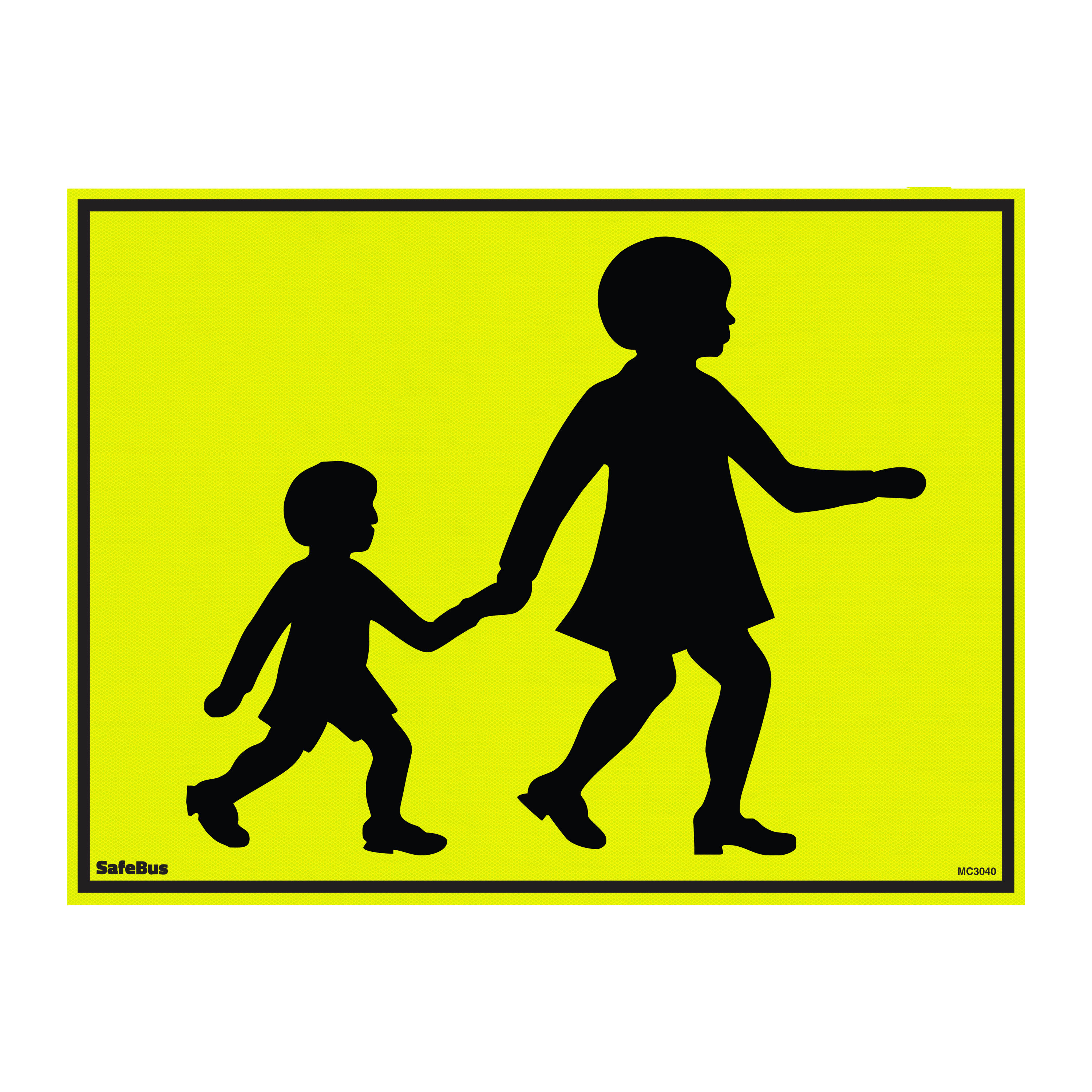

Mother & child sign

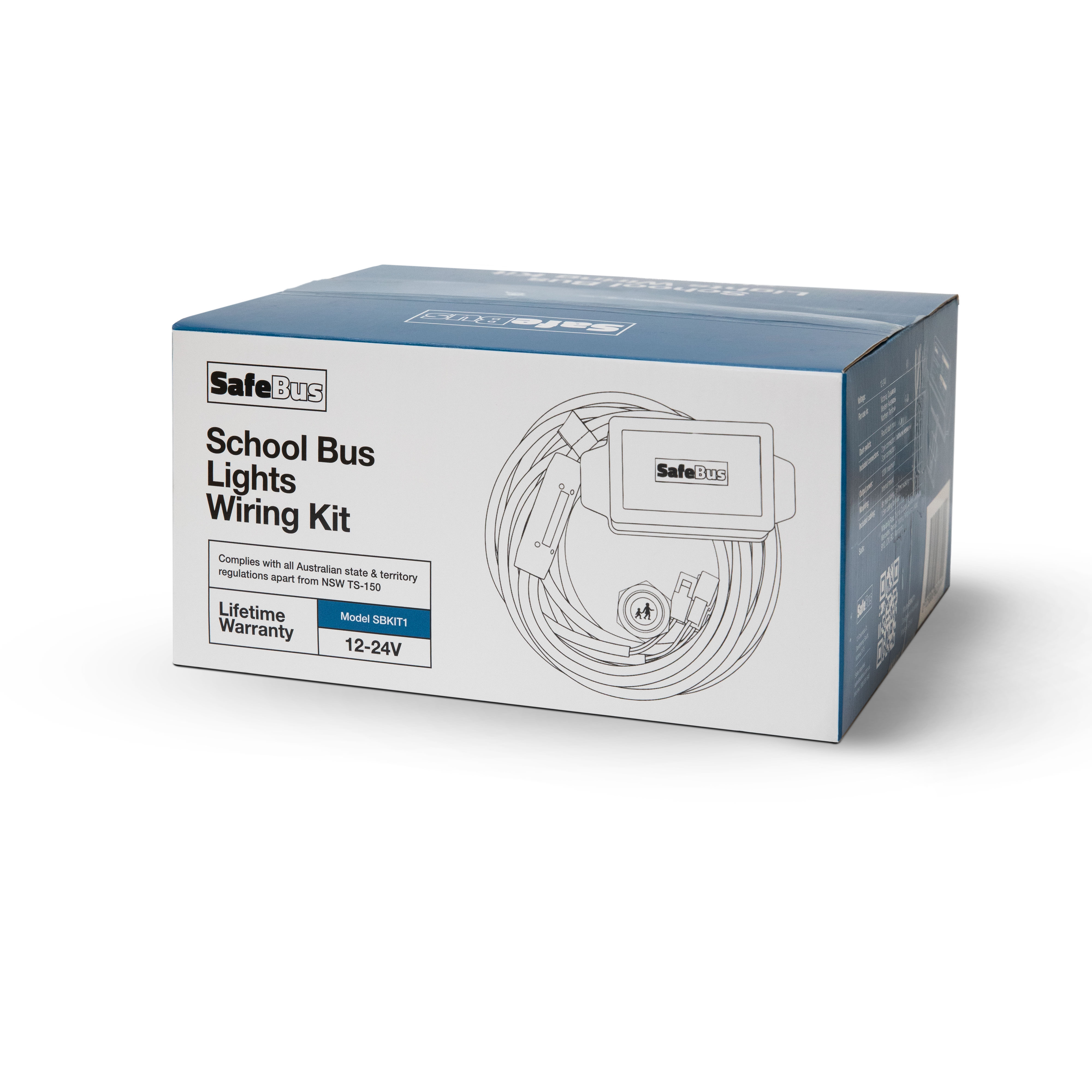

SBKIT1 — Loom

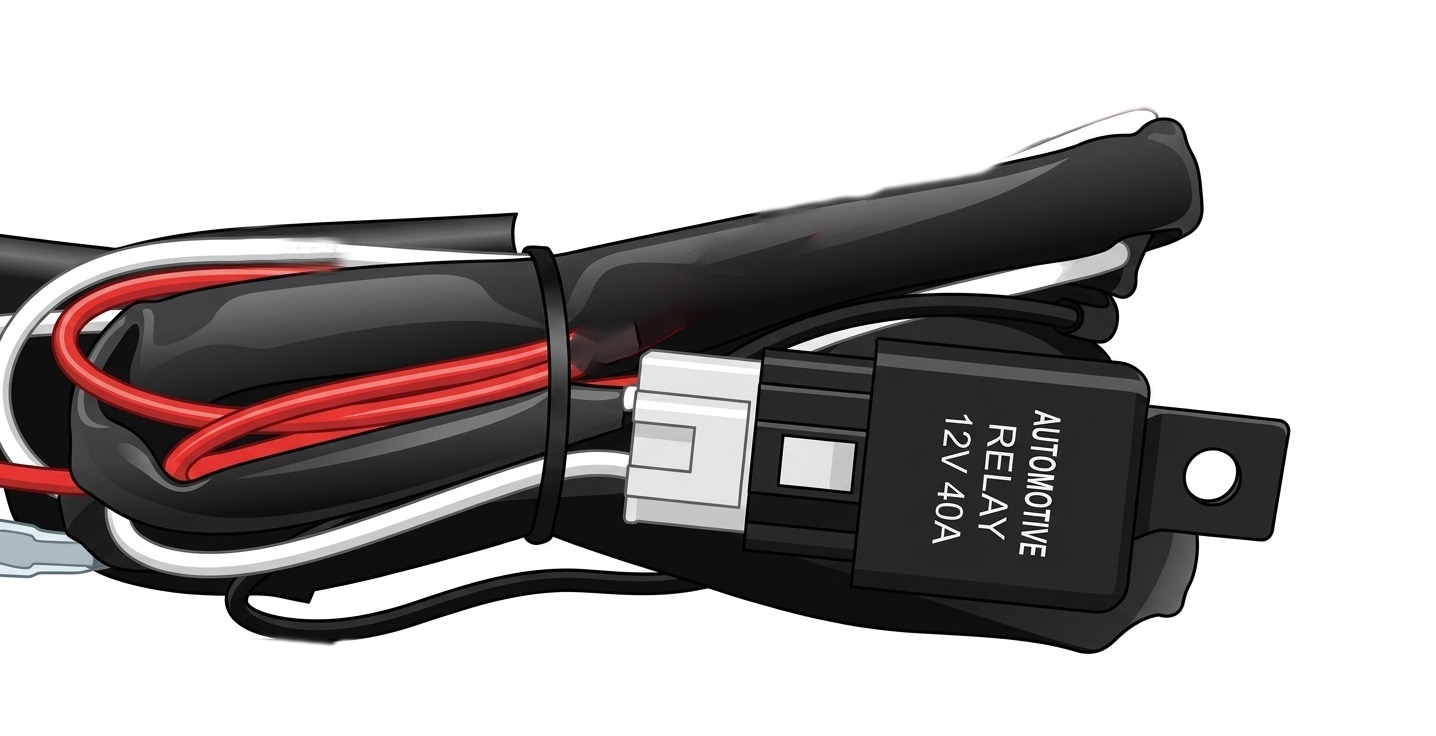

RELAY

Suggested cable runs

Suggested cable run diagram showing main ceiling loom, switch wiring and door sensor wiring routes with legend

LDV Deliver 9 interior line diagram showing main loom, door sensor wiring and illuminated control switch routing — Fig. 1 — Interior loom & switch wiring routes

Tip: to make loom installation easier, cut it at the white tag markers, feed it through the bus, then rejoin using the supplied 3-pin connectors.

Signage & lights

1.1 — Front signage & lights

Stick the SCHOOL BUS sign at the very top of the windscreen.
Note: Some models have an ADAS camera in this area that may require trimming of the sign
Attach the SB008 front lights on either side of the SCHOOL BUS signage, mounting them within 100mm of the sign and visually confirm that they are level with the road.
Attach the SB008 lights with pop rivets or stainless steel screws, run the cables through, applying UV stabilised silicone
On the inside of the bus, locate the light cables and use the supplied 2-pin connectors to connect the lights to the main loom (see Step 2 for loom runs)

LDV Deliver 9 sign and lights fitted, front view, external mount — Fig. 2 — Sign & lights fitted, front view

1.2 — Rear signage & rear lights

As there are barn doors at the back of the LDV, cut the decal in half & attach as per Fig. 3
Attach the SB001A lights above the rear glass, making sure that both lights are no more than 100mm away from the decal & the same distance to the decal. See Fig 3 for reference.
Open both barn doors and remove the trim pieces. Run the light cables down through the door frame and out to the rubber boot connecting the door to the bus chassis. See Fig 4 for details
Connect the lights to the main loom using the supplied 2-pin connectors.
Note: light cable extension may be required

Rear of LDV Deliver 9 showing child-safety decal centrally mounted, external mount — Fig. 3 — Rear decal placement, barn doors

Wiring

Tip: Refer to Fig 1 for additional information on suggested cable runs before starting

2.1 — Front to back

To the right of the steering wheel, remove the cup holder and trim covering the fuse panel. Mount the LCM100 module in this area.
Run the loom from the fuse panel area to the top of the A-pillar to the rear of the bus through the headlining or air vents. This is typically the point where the loom is cut and rejoined with the 3-pin connectors.
At the rear of the bus, the loom may also be cut to ease getting the cables through the rubber boots to the rear lights.

2.2 — Switch

Using an 18–20mm hole saw, cut a hole in the dash and insert the supplied switch. See Fig 6 for suggested position
Connect the switch to the grey connector

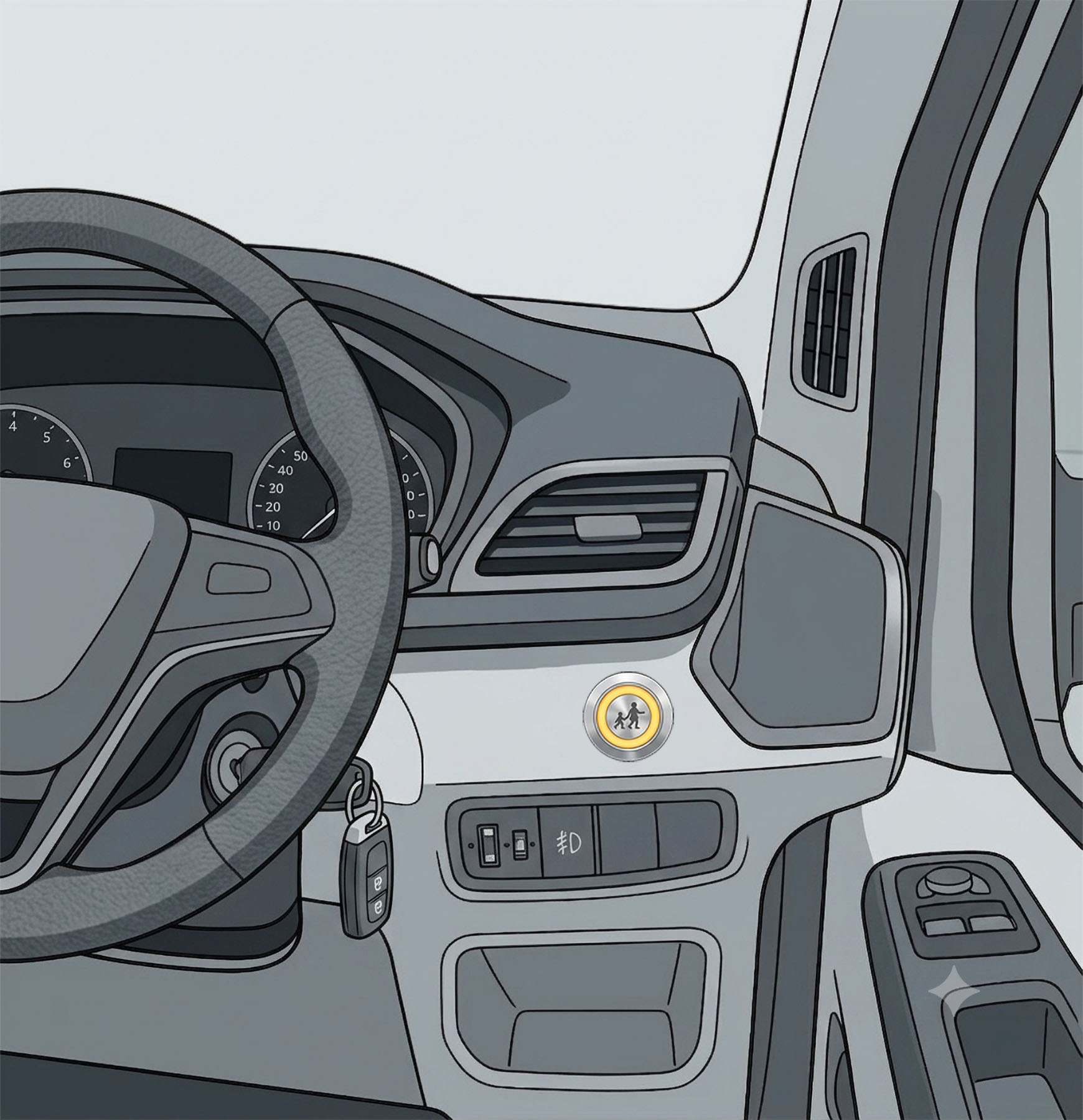

Dash photo showing illuminated control switch location — Fig. 6 — Switch location on dash

2.3 — Door sensor

The door sensor is connected via the supplied relay. Mount the relay near the LCM100 and connect the black wire to ground and run the twin core cable to the light near the sliding door footwell. Connect the red wire to one side of the light and the black wire to the other side. See Fig 5.
Note: When the bus has been sitting idle for some time or the door has been left open, the light may go off. During normal pick-up & drop off operation, it will function correctly.

Door sensor assembly wiring connection to courtesy light, red wire to one side, black to other — Fig. 5 — Door sensor assembly wiring

Reference — flashing controller wiring

Wire	Function
Red	Positive
Black	Ground
Yellow	Left light
White	Right light
Brown	Door sensor — negative
Green	Door sensor — positive

SafeBus LCM100 flashing light controller wiring diagram with wire colour legend — Fig. 7 — Control box wiring reference
