MITSUBISHI ROSA · LIGHT KIT INSTALLATION

JULY 2026, Version 2

Which kit does this guide apply to?

This installation guide covers the internal-mount SafeBus School Bus Light Kit for the Mitsubishi Rosa, compliant in every Australian state and territory except NSW and Tasmania. Pick your state below to view and order the correct kit.

FRONT: Internal mount · REAR: Internal mount

Mitsubishi Rosa (2019+)

School Bus Light Kit — Installation Guide

Before you start

Read every step in full before beginning any wiring or drilling.
Disconnect the battery negative terminal before making any connections.
Two-person job recommended when feeding the loom through the headlining and A-pillar.
Always verify door-sensor polarity (Section 2.4) with a multimeter before connecting — incorrect polarity will not trigger the warning lights correctly.

Kit items

SB001B Front Wig-Wag lights
SB001B Rear Wig-Wag lights
LCM100 Electronic control box
SBKIT1 Complete loom
SB9015 Front signage
MC3040 Rear signage
Dash switch

Tools & materials

18–20mm hole saw
Wire strippers & terminal crimper
Cable ties
Trim removal tool
Multimeter (polarity check)
Supplied 2-pin & 3-pin connectors

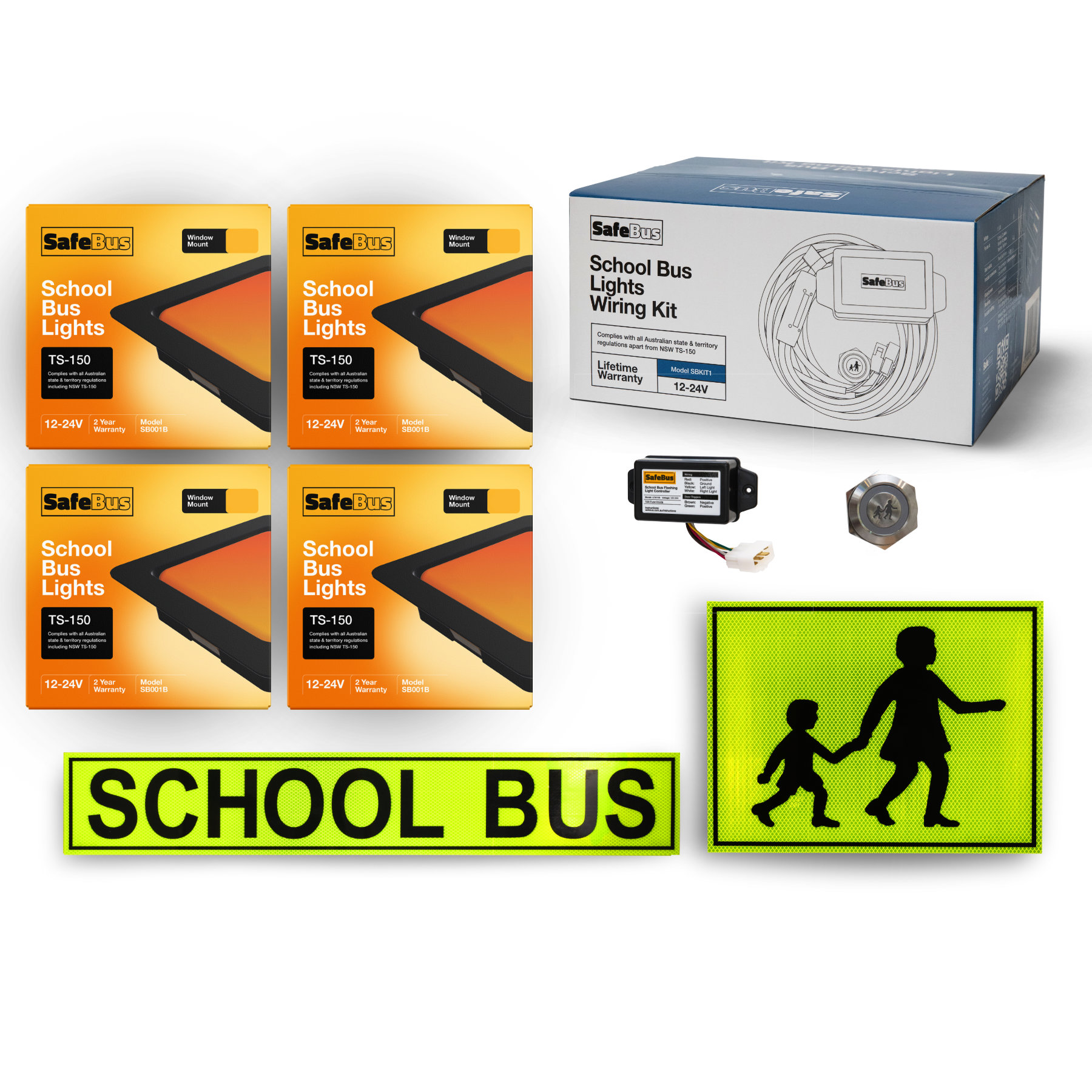

Package Contents

SB001B Front light

SB001B Rear light

LCM100 Control box

Dash switch

SB9015 sign

Mother & child sign

SBKIT1 — Loom

Suggested cable runs

Interior line diagram — Fig. 1 — Interior loom & switch wiring routes

Tip: to make loom installation easier, cut it at the white tag markers, feed it through the bus, then rejoin using the supplied 3-pin connectors.

Signage & lights

1.1 — Front signage & lights

Start by temporarily putting the School Bus sign on the front of the bus. Slide part of the sign behind the rubber grommets around the windscreen wipers. See Fig 2.
From the inside of the bus, stick the SB001B lights on the windscreen being careful to avoid the windscreen wipers. See Fig 2.
Remove the driver's side A-pillar and run the cables from the lights to the driver's side A-pillar area. The cables fit neatly in between the plastic dash and rubber gasket.
On the outside of the bus, align the School Bus sign to be the same distance from both lights and stick the sign on the bus

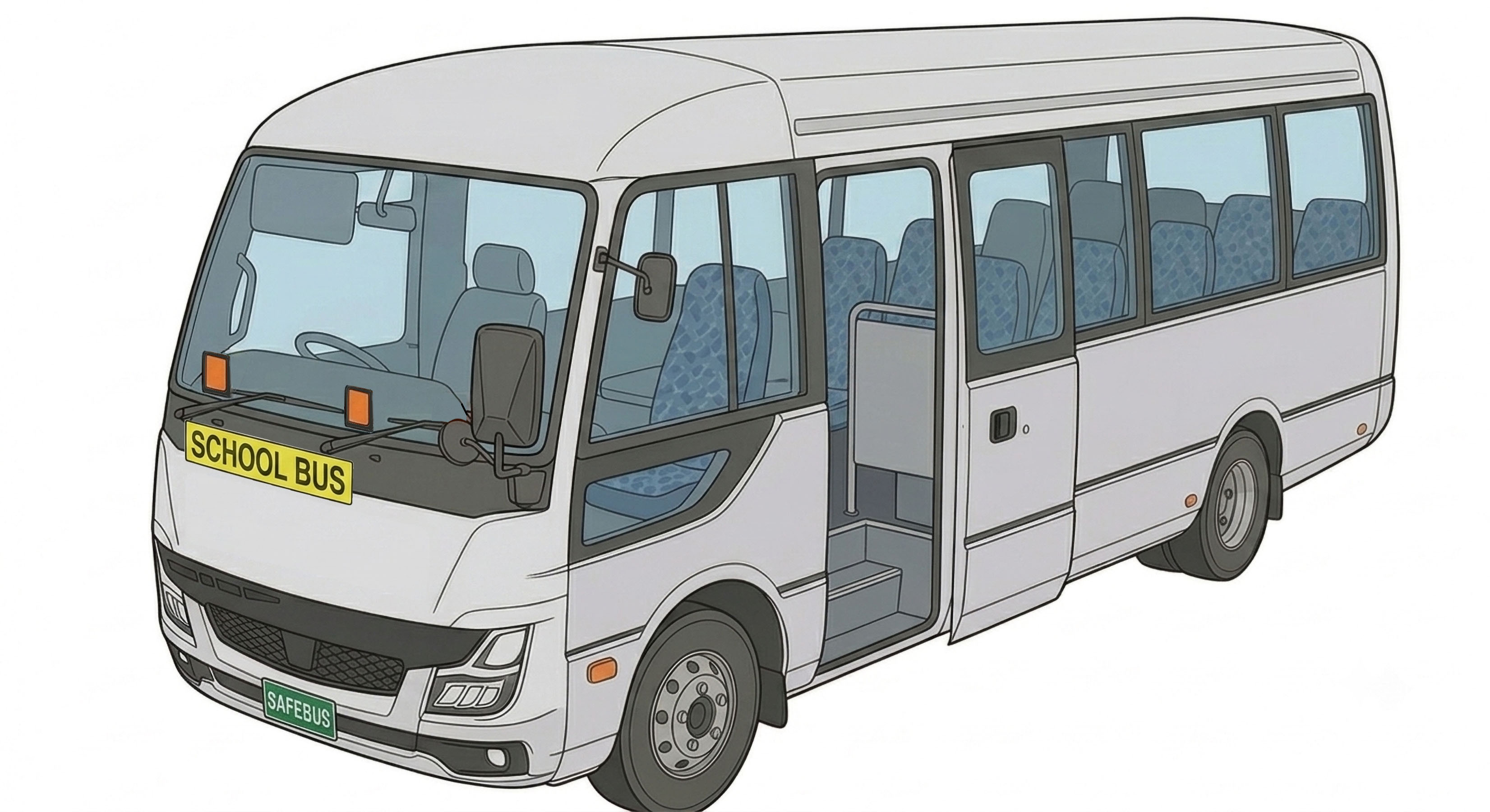

Mitsubishi Rosa front view, internal mount — Fig. 2 — Sign & lights fitted, front view

1.2 — Rear signage & rear lights

To align the signage, measure & stick the signage from the bottom of the right side rear glass:
30cm from the bottom
13cm from the left hand side of the glass
See Fig 3 as a reference
On the inside of the bus, stick the lights on either side of the signage
Connect the lights to the main loom using the supplied 2-pin connectors

Rear window measurements — Fig. 3 — Rear signage measurements

Wiring

2.1 — Front to back

Remove the plastic trim on the left side of the dash, in front of the passenger seat. Remove one screw on the bottom left and one plastic clip on the side of the trim.
Remove the trim on the A-Pillar on the driver's side.
Run the loom from the fuse area to the driver's side A-pillar, then to the rear of the bus through the headlining or air vents. This is typically the point where the loom is cut and rejoined with the 3-pin connectors.
At the rear of the bus, the loom may also be cut to ease passage through to the rear lights

2.2 — Glove box area

Below the plastic trim on the left side of the dash, connect the black GND wire to ground.
One power option is the fusebox. Connect the red +V wire to a fuse in the fuse box. Check with a multimeter for ignition power.
Connect the supplied 6-way connector to the switching box.

2.3 — Door sensor

On the left side of the dash access the door control relay. Locate the green wire (NOT the green wire with white tracer) and confirm that the wire is pulled low when the door is open. Connect the green wire to the brown wire on the loom. See Fig 5.
Note: on certain Rosa models a blocking diode may be required.

2.4 — Switch

Using an 18–20mm hole saw, cut a hole in the dash and insert the supplied switch. See Fig 4 for suggested position.
Note: Make sure the location chosen has enough space behind to fit the barrel of the switch.
Connect the switch to the grey connector

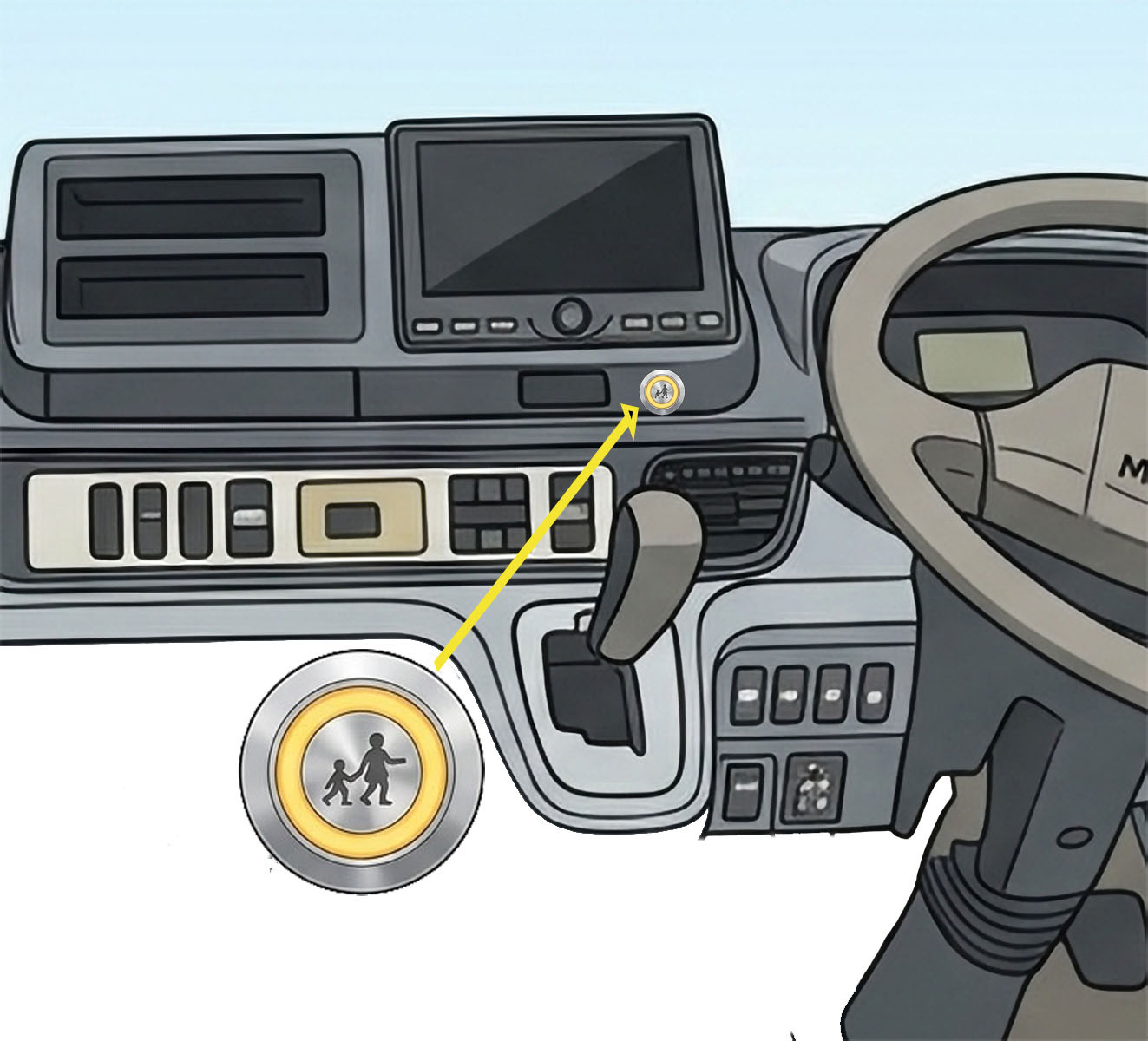

Dash photo showing illuminated control switch location — Fig. 4 — Switch location on dash

Bus door sensor relay — Fig. 5 – Door sensor location

Reference — flashing controller wiring

Wire	Function
Red	Positive
Black	Ground
Yellow	Left light
White	Right light
Brown	Door sensor — negative
Green	Door sensor — positive

Flashing light controller wiring diagram — Fig. 6 — Control box wiring reference
